Waste Shredders

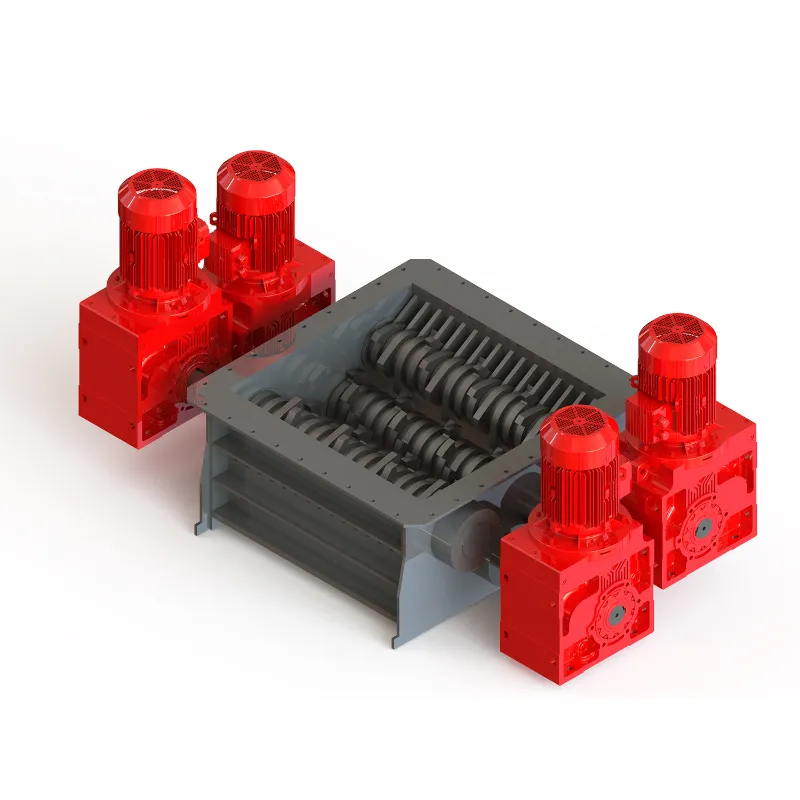

Dual and Quad Shaft Shredders
- VERTISA dual and quad shaft shredders are designed to efficiently shred medical waste as well as durable materials such as surgical stainless steel instruments and hard ceramics. The PLC-controlled “anti-blockage” mechanism automatically changes the rotation direction to prevent blade jamming.
- VERTISA shredders are powered by a planetary gearbox system with a high-performance electric motor. The thickness of the cutting discs ranges from 15.3 mm to 60 mm, allowing adjustments based on different waste types and desired output sizes. The output size can be easily modified using interchangeable screens.
- VERTISA’s R&D team develops comprehensive shredding solutions tailored to the waste management industry. These customized systems effectively process a wide range of waste materials, including paper, cardboard packaging, cardboard tubes, hard disks, electronic devices, CDs and DVDs, industrial and hazardous waste, radioactive materials, organic waste, steel barrels, and many more.
Design Features

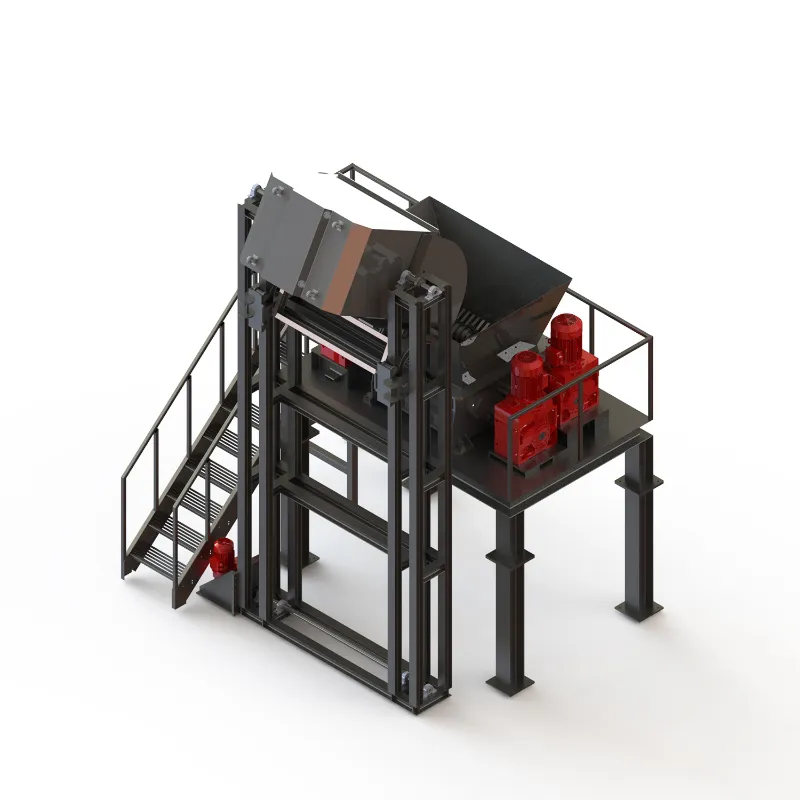

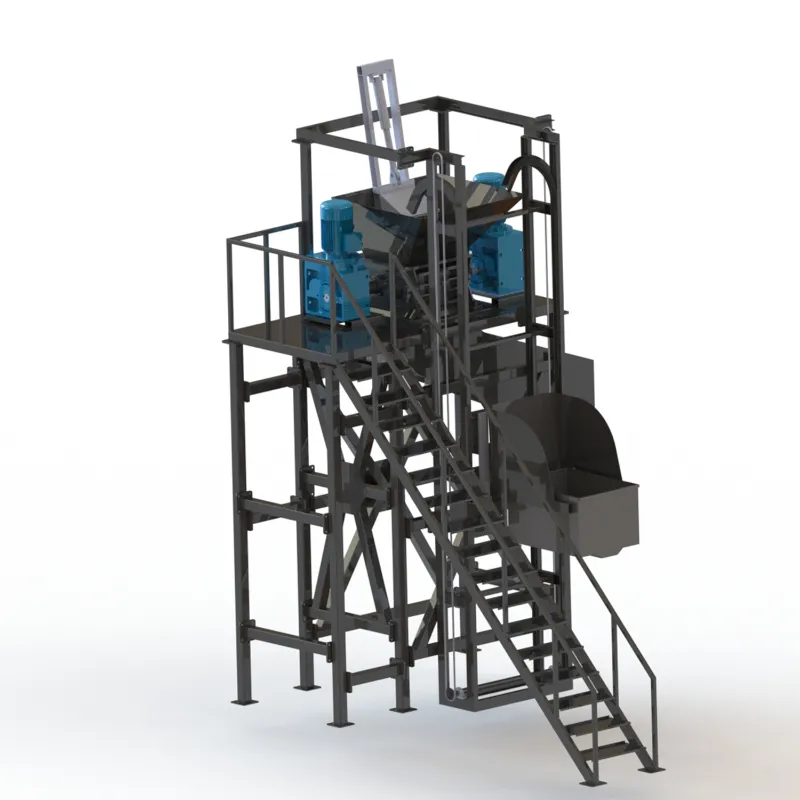

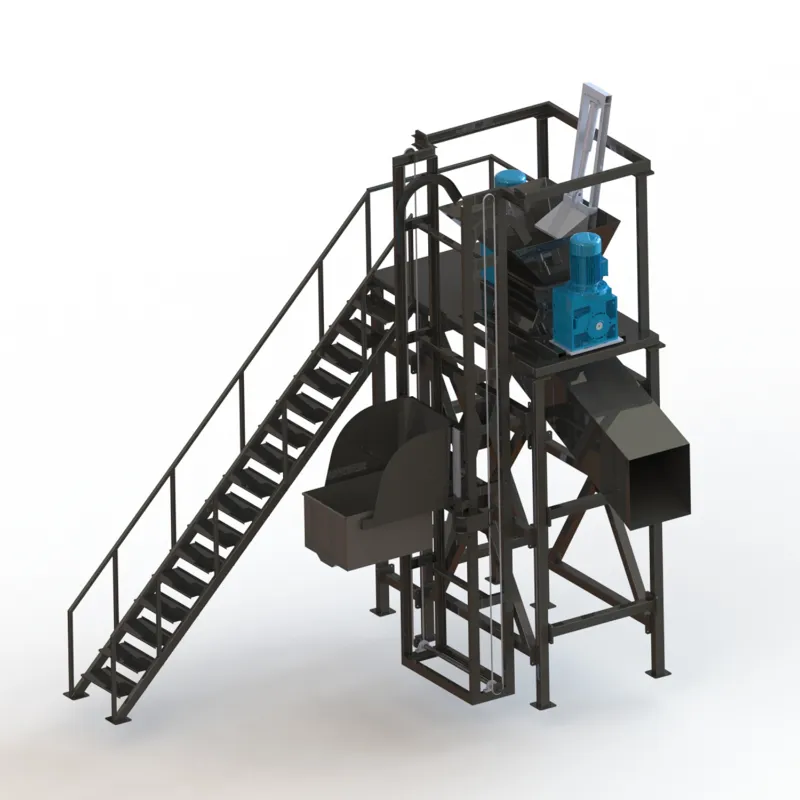

- Automatic Loading Elevator Option
- Optional Platform with Security Barriers
- Motor Controlled by Inverter System
- "Auto-Reverse" Mechanism to Prevent Blade Jamming
- Manual Shredder Control via User Interface
- Gearbox-Integrated High-Power Motor System
- Smart User Interface with Touchscreen Electrical Panel
- Emergency Stop Buttons
- High Torque, Low-Speed Design for Maximum Shredding Efficiency
- Special Cutting Disc Technology for Maximum Durability
- Large-Capacity Material Feeding System
- Heavy-Duty, High-Torque Bearings Operating in an Oil Reservoir
- Variable Speed Control for Energy Efficiency
- Special Cutting Disc Design for High Performance and Long Service Life
- Cleaning Mechanism to Prevent Waste Blockage
- Integrated Conveyor System to Optimize the Discharge Process
Applications
- Industrial Waste Disposal
- Packaging and Wrapping Waste
- Medical Waste Processing Systems
- Paper and Cardboard Recycling Processes
- Tire and Rubber Shredding Applications
- Plastic Waste Management
- Hard Drive, Electronic Device, CD & DVD Destruction
- Metal and Steel Barrel Shredding Solutions
Technical Specifications
| TECHNICAL DATA | VD 15 | VD 30 | VD 44 | VD 60 | VD 110 | VQ 30 | VQ 44 | VQ 60 | VQ 88 | VQ 120 | VQ 220 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Shafts | 2 | 4 | ||||||||||
| Driving Power | kW | 1 X 15 | 2 X 15 | 2 X 22 | 2 X 30 | 2 X 55 | 4 X 7.5 | 4 X 11 | 4 X 15 | 4 X 22 | 4 X 30 | 4 X 55 |
| Ram Feeder Power | kW | 5 | ||||||||||
| Number of Cutter Disks | 18 | 30 | 30 | 42 | 52 | 52 | 52 | 52 | 52 | 66 | 66 | |
| Cutter Disk Thickness | mm | 24 | 24 | 24 | 30 | 44 | 24 | 24 | 30 | 30 | 35 | 50 |
| Shaft Diameter | mm | 85 | 85 | 85 | 120 | 160 | 130 | 130 | 130 | 130 | 150 | 190 |
| Cutting Chamber | mm | 505 x 507 | 505 x 607 | 505 x 607 | 875 x 1100 | 875 x 1350 | 840 x 910 | 840 x 910 | 1000 x 1210 | 1000 x 1210 | 1100 x 1300 | 1400 x 1610 |
| Hopper Opening | mm | 1300 x 1300 | 1600 x 1600 | 1800 x 1800 | 2000 x 2000 | 2300 x 2850 | 2000 x 2100 | 2000 x 2100 | 2100 x 2300 | 2100 x 2300 | 2200 x 2500 | 2400 x 2700 |
| Shaft Speed | rpm | 20-35 | 20-35 | 20-35 | 20-35 | 20-35 | 20-35 | 20-35 | 20-35 | 20-35 | 20-35 | 20-35 |
