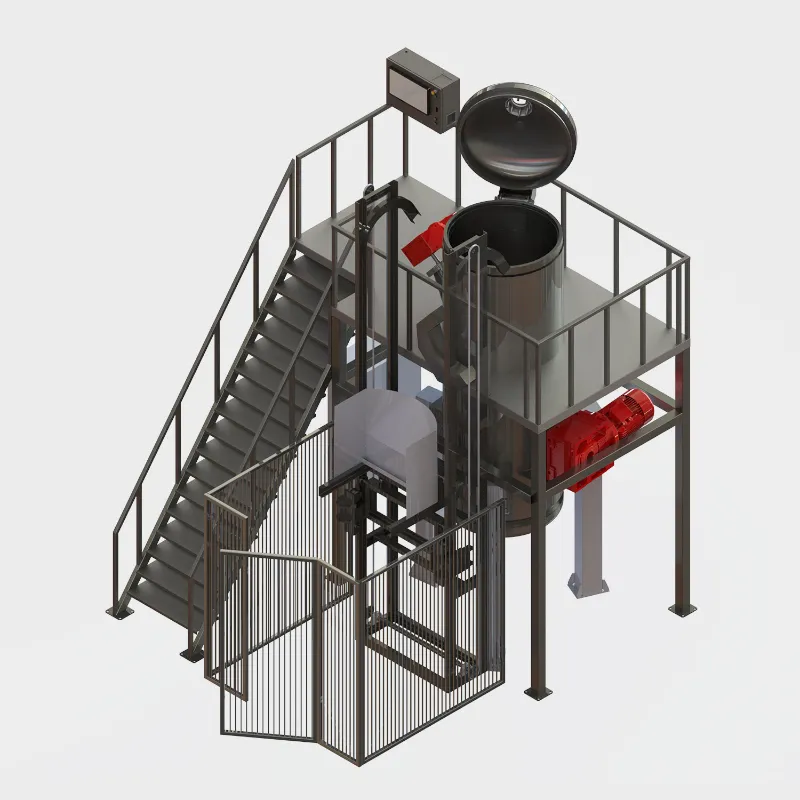

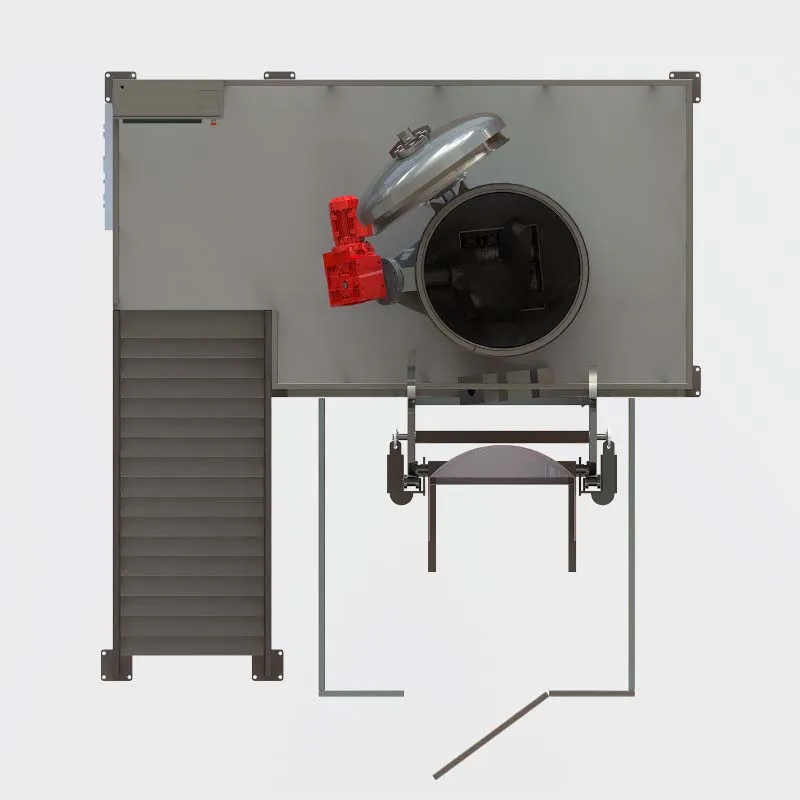

PROMED P1000
Kapasite: 250 Kg/saat (550 Lbs/H)
Kullanım Alanı: Büyük Ölçekli Hastaneler ve Endüstriyel Sterilizasyon Tesisleri
- Dayanıklı ve yüksek kaliteli paslanmaz çelikten üretilmiş basınç odası
- TÜV Austria tarafından onaylanmış tasarım ve üretim sertifikalarına sahiptir
- PED (2014/68/EU), 2006/42/EC, 2014/30/EU, EN285 ve AB yönetmeliklerine uygun olarak üretilmiştir
- Raporlama ve görselleştirme yazılımıyla entegre edilmiş akıllı otomasyon kontrol sistemi
- Uzaktan izleme ve arıza tespiti için online bağlantı desteği
- Operatör müdahalesine gerek duymayan tam otomatik çalışma özelliği
- Kullanıcı deneyimini kolaylaştıran otomatik yükleme asansörü
- Su tüketimi gerektirmeyen verimli ve çevre dostu tasarım
- Minimum enerji ve yakıt tüketimi için gelişmiş buhar geri kazanım sistemi ile donatılmış entegre buhar kazanları
Sterilization Cycle
When the sterilization cycle begins, the top lid automatically opens, and the waste is emptied from the discharge chamber into the device. Once the waste is fully transferred, the lid closes, and the shredding process starts.
The PLC-controlled shredding mechanism automatically adjusts its rotation direction with the “anti-blockage” system, preventing blade jamming.
The specially developed shredding system can efficiently process stainless steel surgical instruments and durable ceramic materials.
The mixer located in the upper chamber continuously feeds material into the shredding unit, ensuring a seamless and efficient operation.
Steam is supplied to the device until a uniform temperature of 134°C (274°F) is reached in both the upper and lower chambers. Sterilization is completed by maintaining the temperature between 134°C and 138°C with equivalent pressure for 10 minutes.
These processes ensure an 8Log10 reduction in the pathogenic contamination level of medical waste.
During the cooling process, excess steam accumulated in the chamber is discharged, while the temperature of the sterilized waste is lowered through cold air injection. The condensed water, which has undergone sterilization and can be safely released into the sewage system, is filtered and discharged using a pressure and vacuum system.
When the discharge lid opens, a container is positioned beneath the chamber, allowing the sterilized waste to be easily released. Once the container is removed, the bottom lid closes, and the sterilizer automatically initiates the next cycle.
Key Features
| Technical Specifications | Value |
|---|---|
| Dimensions (L x W x H) (mm) | 2500 x 2500 x 5500 |
| Weight (Kg) | 2900 |
| Steam Pressure (Bar max) | 8 |
| Required Electrical Power (Kw) | 20 |
| Operating Features | Value |
| Sterilization Capacity (Kg/Hour) | 200-250 |
| Processing Volume Capacity (Lt) | 1400 |
| Average Waste Density (Kg/m3) | 100-150 |
| Average Cycle Time (Min) | 35-45 |
| Maximum Steam Flow (Kg/Hour) | 470 |
| Sterilization Efficiency (SAL) | 8Log10 |
| Consumption / Cycle | Value |
| Steam (Kg) | 20 |
| Electricity (Kw) | 9** |
| Water (Lt) | None*** |
| Special Consumables | None |
